How to connect your Mews Terminal S1 to the Mews Terminal integration

Mews automatically connects your Mews Terminal integration, so you can start using your Mews Terminal immediately upon delivery.






In this article you can learn about:





How to get started with your Mews Terminal



To get your terminal up and running quickly:

  1. When you first receive the device, install the battery.
  2. After the battery is in place, charge the reader by using an outlet or the ethernet dock.

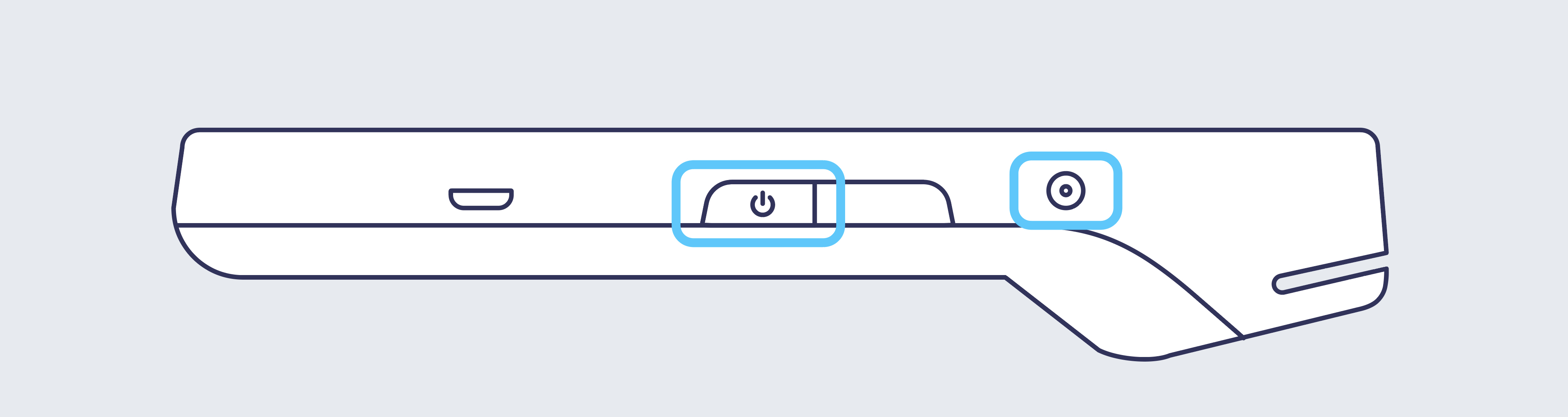

  3. To connect the reader to power, plug the provided cable into the port with the lightning bolt symbol.
  1. After the reader is fully charged, hold down the power button on the right-hand side until the screen turns on.


How to connect the terminal to your Wi-FI network

Note:

  • The system requires you to only use secure Wi-Fi connections for all internet-enabled payment devices.
  • It is important you connect your Mews Terminal S1 to password-protected Wi-Fi networks that leverage either WPA-Personal or WPA2-Personal encryption.
  • If you connect your Mews Terminal S1 device to a public Wi-Fi network, the payment provider disconnects you, preventing you from processing payments.

You need to connect the Mews Terminal S1 to the same local network as Mews. To connect:

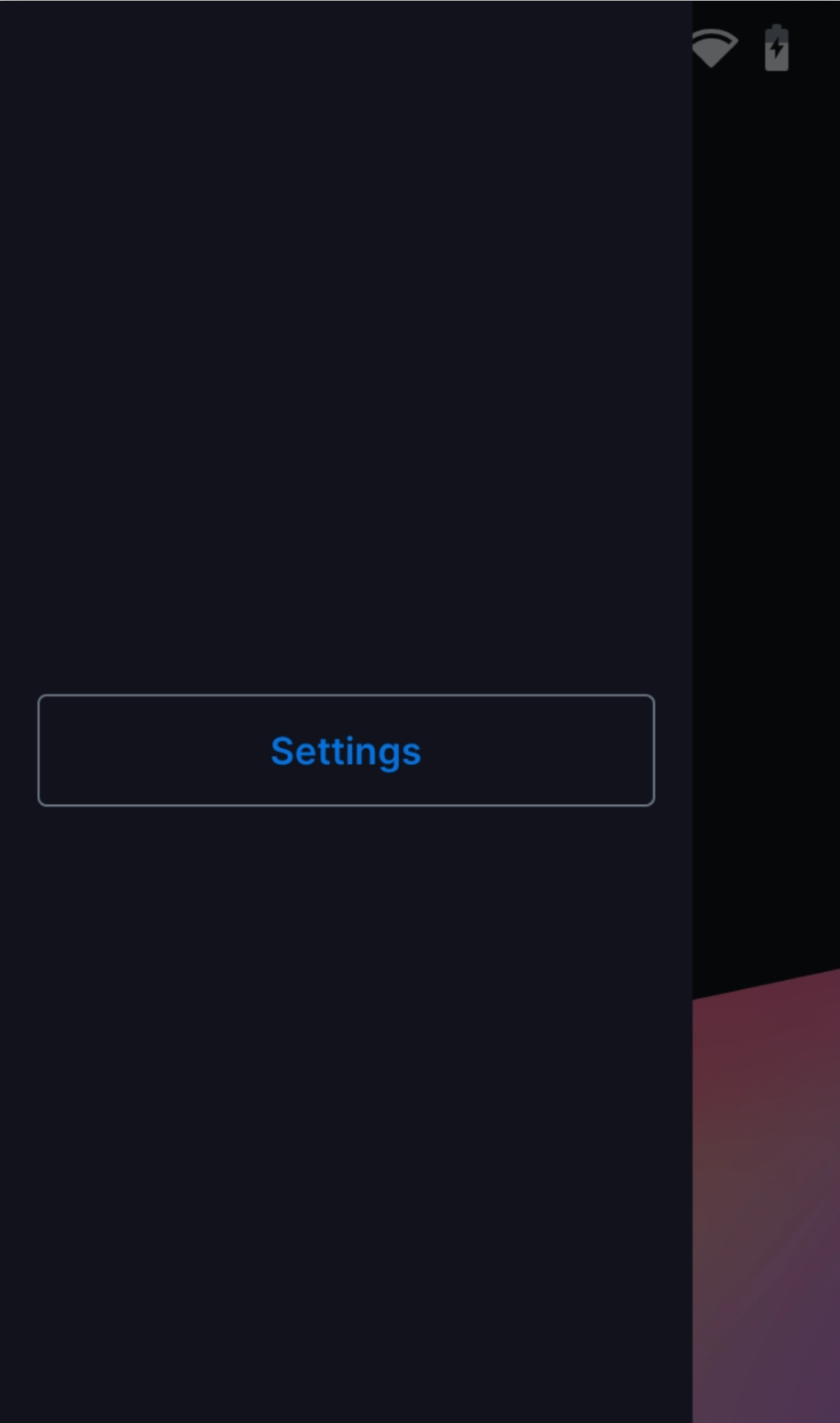

  1. On the terminal welcome screen, swipe right.
  2. Tap Settings.

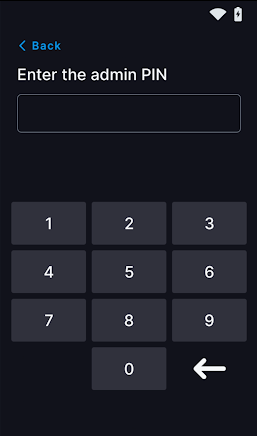

  3. Enter the admin PIN.
Note: Your admin PIN is visible in your new Mews Terminal integration. To access:
  • In the Marketplace, go to My subscriptions.
  • Locate the new Mews Terminal integration. Note: The default integration name is Mews Terminal.
  • Click on Edit to go to the settings page.
  • View the PIN in the Default PIN code field.
  1. Select Network to choose the network and connect. Note: After this step, the terminal displays a series of update messages.


Note:

  • Attempting to join a new network disconnects the terminal from any existing wireless connection.
  • Mews Terminal S1 does not support non-password-protected networks, enterprise networks and IPV6 networks.


How to configure the terminal Country and Language settings

  1. On the terminal welcome screen, swipe right.
  2. Tap Settings.
  3. Enter the admin PIN.
  4. Under Admin options, tap either Language or Country to configure.
  5. Select your Language or Country.





Adding your terminal in Mews

  1. In the Marketplace, go to My subscriptions.
  2. Locate the Mews Terminal integration and click on Edit to go to the settings page.

Note: The default integration name is Mews Terminal.


  1. Click Payment terminals.
  2. Click + Payment terminal.
  3. In the Name field, enter a unique name for the terminal.
  4. To enter the Pairing code, continue to the next section.



Registering your terminal

Note: Connect your terminal to a Wi-Fi network before registering.


  1. On the terminal welcome screen, swipe right.
  2. Tap Settings.



  1. Enter the admin PIN. Note: Your admin PIN is visible in your New Mews Terminal integration.

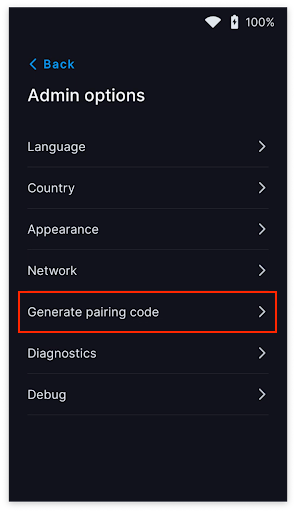

  1. Under Admin options, tap Generate pairing code.


  1. The terminal then generates a registration code. Note: The code displays as three words, for example, mews-remarkable-spaces.
  2. In Mews, enter the code in the Pairing code field.
  3. Click Create. Note: After this step, the terminal displays a series of update messages.

The terminal welcome screen then displays and indicates that the updates are complete.


How to connect and set up Mews Terminal for Kiosk

You can learn about how to connect and set up your Mews Terminal for Kiosk here.



You can learn about how to connect Mews Terminal S1 to Mews POS here.
