How to set up Italian fiscal printers for Mews POS

To comply with Italian regulations, you can set up an Italian fiscal printer for Mews POS to print all legally required receipts using a fiscal printer authorised by the Italian government. A fiscal printer is a receipt printer certified by the Italian tax authority that records every sale for tax reporting. If your property uses both Mews POS and Mews Operations on the same fiscal printer, you need to configure the printer so that both systems work together without conflict. Mews POS, or point of sale, is the Mews product for restaurant and outlet sales. Mews Operations is the Mews property management system, or PMS. Mews POS and Mews Operations share the same VAT groups but use separate, non-overlapping department ranges. VAT, or value-added tax, is the sales tax applied to each item. A VAT group is a numbered VAT rate slot on the fiscal printer. A department, or reparto in Italian, is a sales category on the fiscal printer that groups items with the same VAT treatment.



You configure the printer in the Epson software on the computer connected to the printer, not in Mews POS. You configure the printer after you have set up the printer for Mews Operations and before you take orders in Mews POS. The Epson software menus are in Italian; in this article, the English meaning follows each Italian menu name the first time the name appears. You need access to Mews Operations and to the Epson software.



ⓘ
Note
  • Mews POS uses departments 1–10 only. Mews Operations uses departments 60–69 and 80–89. You must not reassign departments 1–10 to Mews Operations.
  • Always consult your finance team before making changes to your fiscal printer configuration.



In this article you can learn about:



Prerequisites

Before you set up the fiscal printer for Mews POS, check the following prerequisites.

  • To use the Italian fiscal printer with Mews POS, you need one of the following printers:

    • Epson FP81 II

    • Epson FP90 III

  • You need to have the Fiscal machine integration connected in Mews Operations and your fiscal printer already set up and connected. If you have not done this yet, follow Steps 1 to 3 in the How to set up Italian fiscal printers for Mews Operations article before continuing.



How to set up the fiscal printer for Mews POS

Setting up the fiscal printer for Mews POS has two steps: configuring the VAT rates and configuring the POS departments in the Epson software.



Step 1 Configure the VAT rates

In this step, you configure the VAT groups in the Epson software. IVA, or Imposta sul Valore Aggiunto, is the Italian term for VAT, so the Epson software labels VAT rates as Aliquote IVA. Mews POS and Mews Operations share these values, so they must match exactly. Do not change the VAT groups after setup. To configure the VAT rates:

  1. Open the Epson software, EpsonFpWizard.

  2. Click Manutenzione, or maintenance.

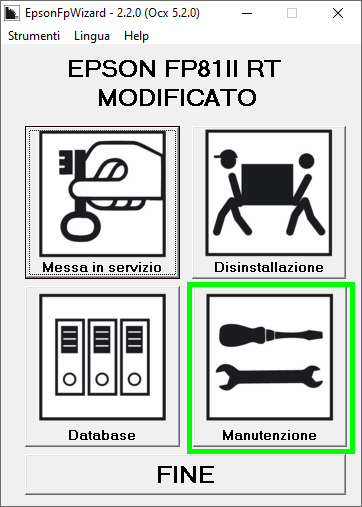

    Epson software, Manutenzione button

  3. Click the icon to open the Simulatore Cassa, or cash register simulator.

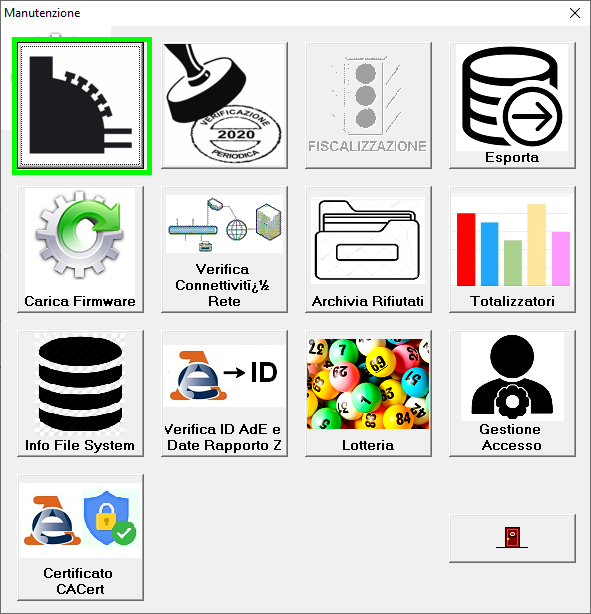

    Simulatore Cassa button in Epson software

  4. Go to Strumenti > Programmazione > IVA / Nature > Aliquote IVA / Nature / Ventilazione to view your Aliquote IVA, or VAT rates. Strumenti means tools and Programmazione means programming.

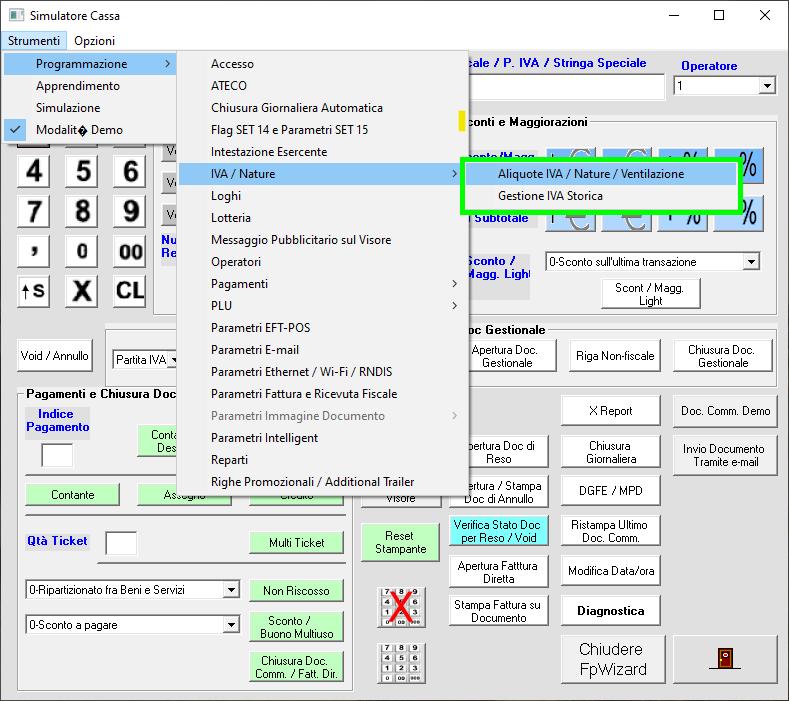

    Aliquote IVA menu in Epson software

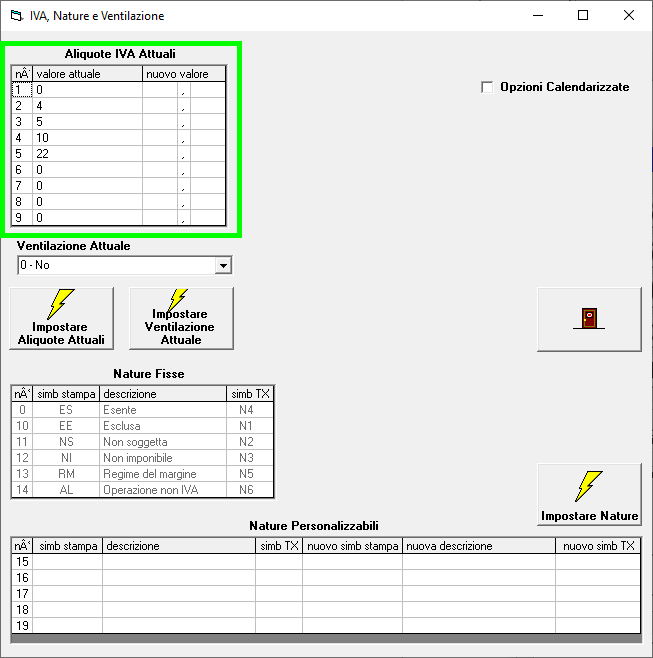

    Aliquote IVA Attuali table in Epson software

  5. Ensure that the table under Aliquote IVA Attuali, or current VAT rates, matches the following values in the Required Aliquote IVA Attuali values table:



Required Aliquote IVA Attuali values

nAVAT/ IVA (valore attuale)
0ESENTE, meaning exempt from VAT
10%
24%
35%
410%
522%
60%
70%
80%
90%
10EE, a code for sales excluded from VAT
  1. If your values match the table, proceed to Step 2 Configure the POS departments.

  2. If your values do not match, complete the following steps:

    1. Do the daily closure, or end-of-day fiscal report that closes the day's sales on the printer.

    2. Set all VAT rates to zero.

    3. Enter the new values as shown in the Required Aliquote IVA Attuali values table in this step.

    4. Click Impostare Aliquoti Attuali, or set current rates, to save the settings.



Note: If you have trouble updating the values, contact Epson support.



Step 2 Configure the POS departments

In this step, you configure departments 1–10 in the Epson software for use by Mews POS. These departments must not be used by Mews Operations. To configure the POS departments:

  1. In the Simulatore Cassa, go to Strumenti > Programmazione > Reparti, or departments.

  2. Update the name of each department as you prefer.

    Note: You do not need to update all reparti, just the ones referenced in this article.

    Reparti screen in Epson software

  3. Set the iva, or VAT group, for each department according to the POS department mapping table in the Mapping tables section of this article.

  4. Click the Confirm icon in Epson software confirm icon after filling in each department to save.



Note: You can configure other fields such as description, prices, and print groups as needed. The VAT group assigned to each department must follow the mapping table exactly.



Mapping tables

The following tables show which VAT group each Mews POS department must use and which department ranges each Mews product uses on the fiscal printer.



POS department mapping

Department (nA)VAT group (VAT GRP)VAT %Intended use
100%Generic Esente / non-tax
224%4% VAT
335%5% VAT
4410%10% VAT
5522%22% VAT (primary)
6522%22% VAT (extra department)
7522%22% VAT (extra department)
8522%22% VAT (extra department)
9522%22% VAT (extra department)
10100%Specific non-tax nature, such as EE



Department ownership reference

Department rangeUsed by
1–10Mews POS
60–69Mews Operations (goods)
80–89Mews Operations (services)



Your fiscal printer is now configured for use with Mews POS.



You can learn more about setting up the printer and the Fiscal machine integration in the help article How to set up Italian fiscal printers for Mews Operations.
