1. In Mews Operations, go to the main menu > Marketplace.
2. In the search bar, enter ‘Mews Connector’ to locate the integration and click Explore.
3. Click Connect Integration.
4. In the newly created Mews Connector integration, click Edit.
5. Click  Access token and copy it.

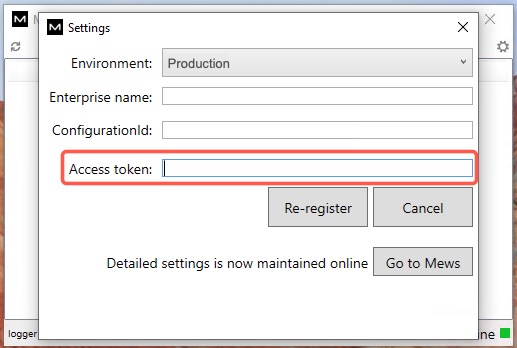

6. In Mews Connector, paste the Access token in the Access token field.

The Mews Connector is now online.

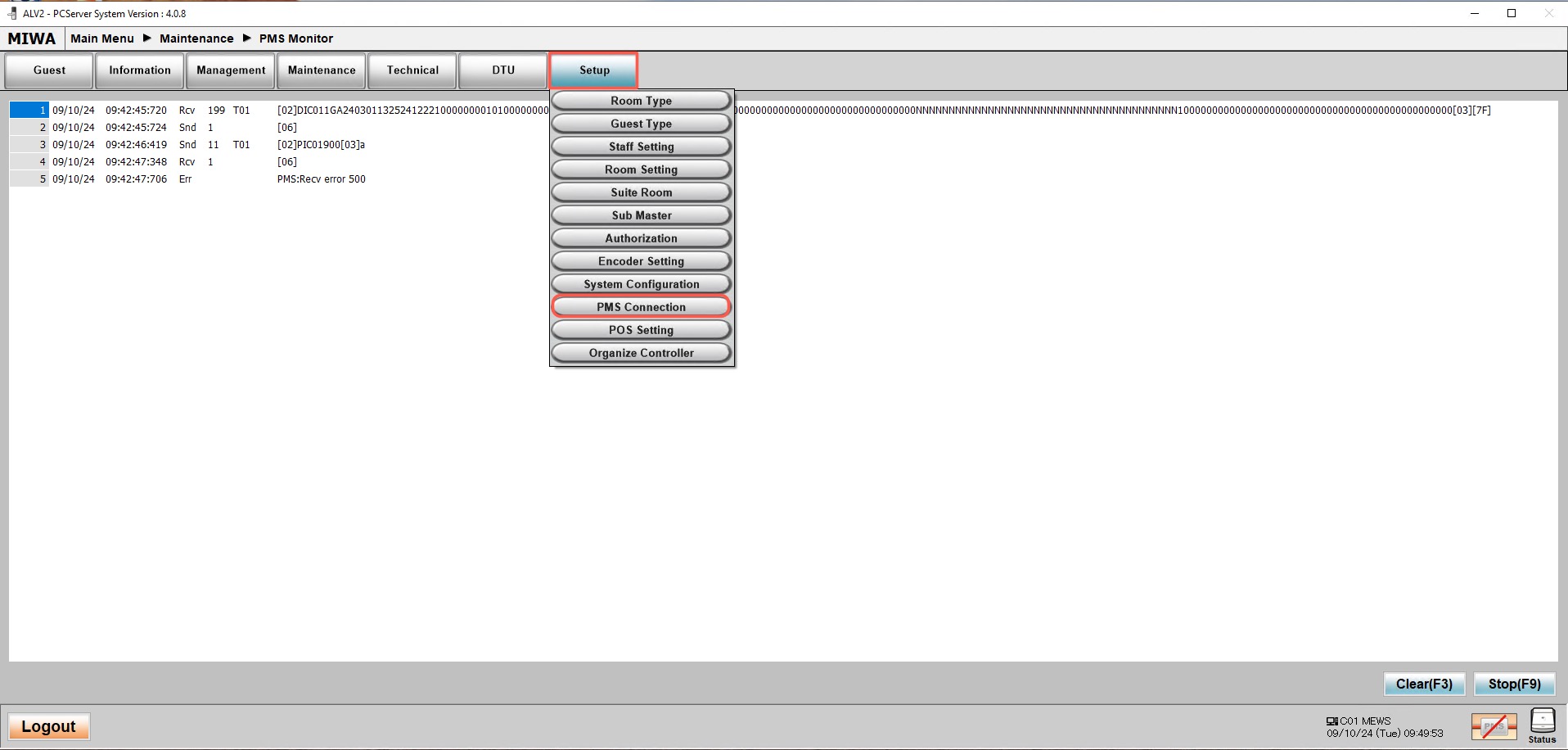

1. Open MIWA ALV2 and click Setup > PMS Connection.

2. Click Connect.

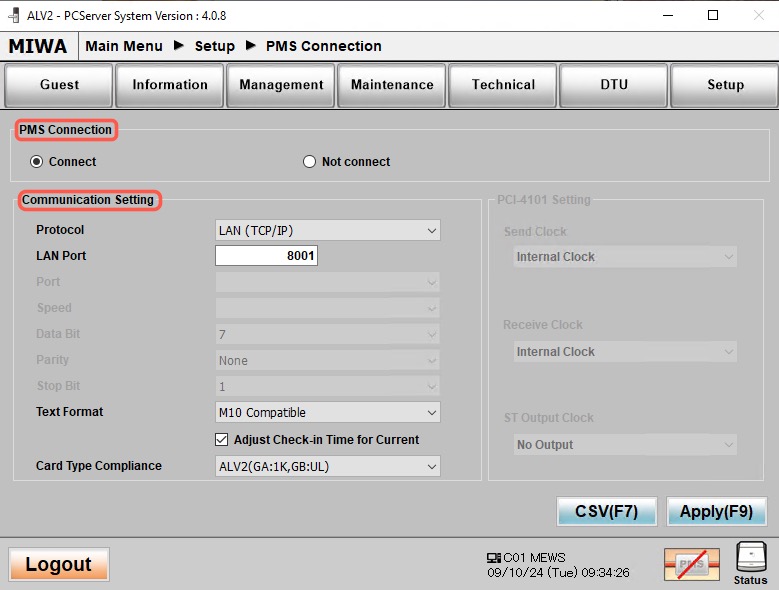

3. In Communication Setting, fill in the following details:
   • Protocol: Click to select LAN (TCP/IP).
   • LAN Port: Make note of the LAN Port number. Note: You need this for Step 3.
   • Text Format: Click to select M10 Compatible.

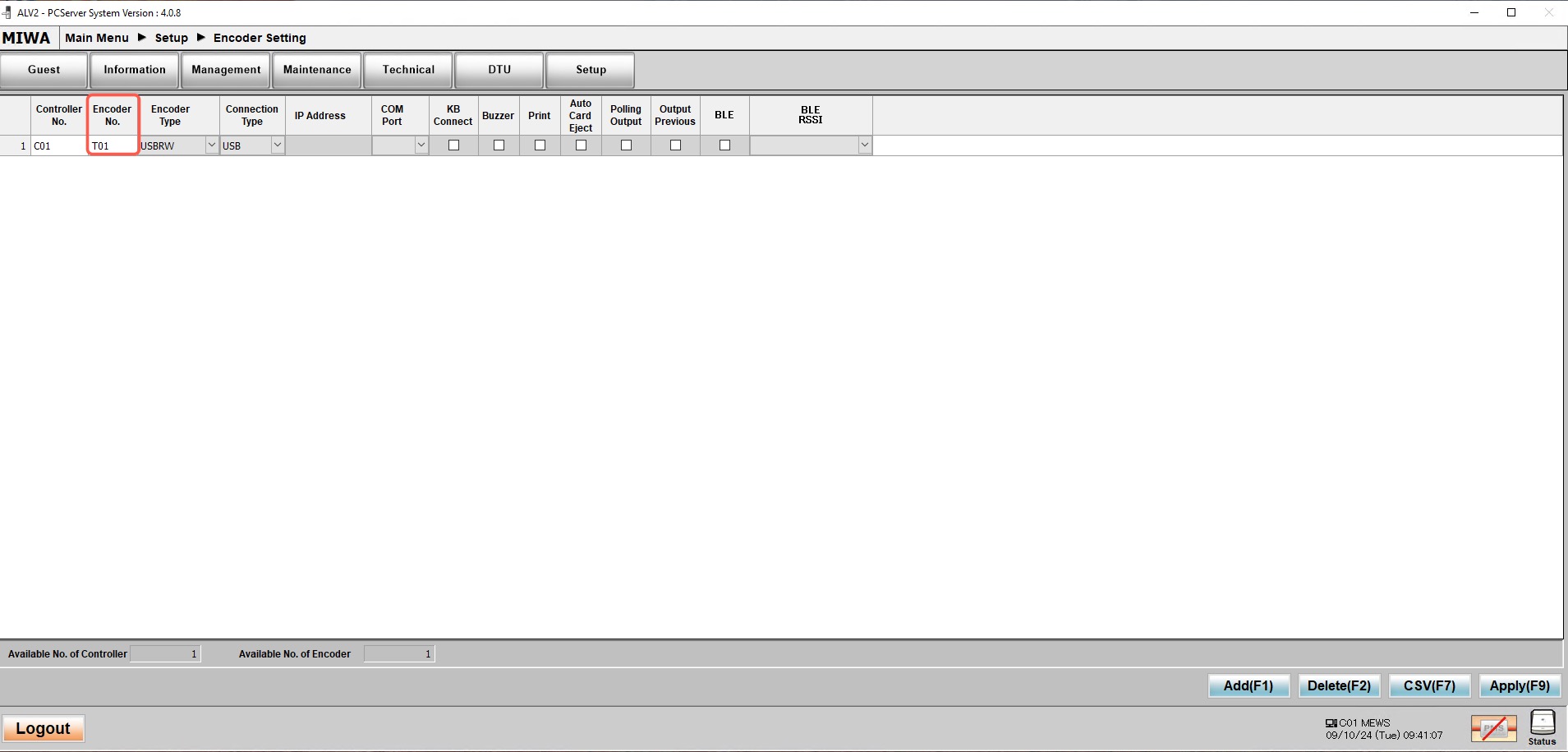

4. Click Setup > Encoder Setting to view encoders. Note: Take note of the Encoder Numbers, you need these for Step 3.

1. In Mews Operations, go to the main menu   > Marketplace.
2. In the search bar, enter ‘Key cutter integration’ to locate the integration and click Explore.
3. Click Connect integration.
4. Click My subscriptions, find the Key cutter integration and click Edit.
5. In the Key cutter integration screen, check the enabled box.
6. Fill in the following details:
   • Name: Edit “Key cutter Integration” to “MIWA”.
   • URL: Enter “http://[IP Address Of MIWA Server]:[LAN Port number]”, for example, http://127.0.0.1:8001.
7. Click Save.
8. Click Key cutters >  Key cutter.
9. In the new screen, fill in the following details:
   • Name: Enter a name that is easy to identify, such as “Reception left”.
   • Identifier: Match the Controller Number from MIWA with the Identifier in Mews. For example, if the MIWA Controller Number is C01, enter 01 in Mews.
   • Data JSON: Enter “{“Type”:”MiwaProtocol”}”.
10. Click Create. Note: Ensure the MIWA Mews Connector integration lists all encoders as Connected Devices .

Repeat steps 8-10 for all key cutters you want to create.

1. In the Key cutter integration, click Key cutter mappings >   Key cutter mapping.
2. In Room, click to select the room you want to map.
3. In Lock identifier, enter the 6 digit lock identifier which appears in MIWA. For example, for Room 101 in Mews you need to enter the appropriate lock identifier from MIWA which is ‘000101’.
4. Click Create.

Repeat these steps for all the rooms you want to map.

1. In Mews Operations, go to the main menu   > Marketplace > My subscriptions > Mews Connector.
2. Click Edit.
3. In Connected devices, click to select all the key cutters you created in Step 3.

1. Restart the Mews Connector application to update the current configuration.
2. In Mews Operations, open the reservation you want to test,
   • from the Timeline select the reservation and click Manage, or
   • enter the customer’s name in the search bar and click on the reservation.
3. In the Status tab, under Spaces, click  Create keys.
4. Click to select your newly created key cutter, then click Create key.
5. When the system issues the key, the PMS indicator in MIWA changes from red to blue. Note: You can also monitor communication through the PMS Monitor in MIWA to ensure the key issuance command is received correctly.
